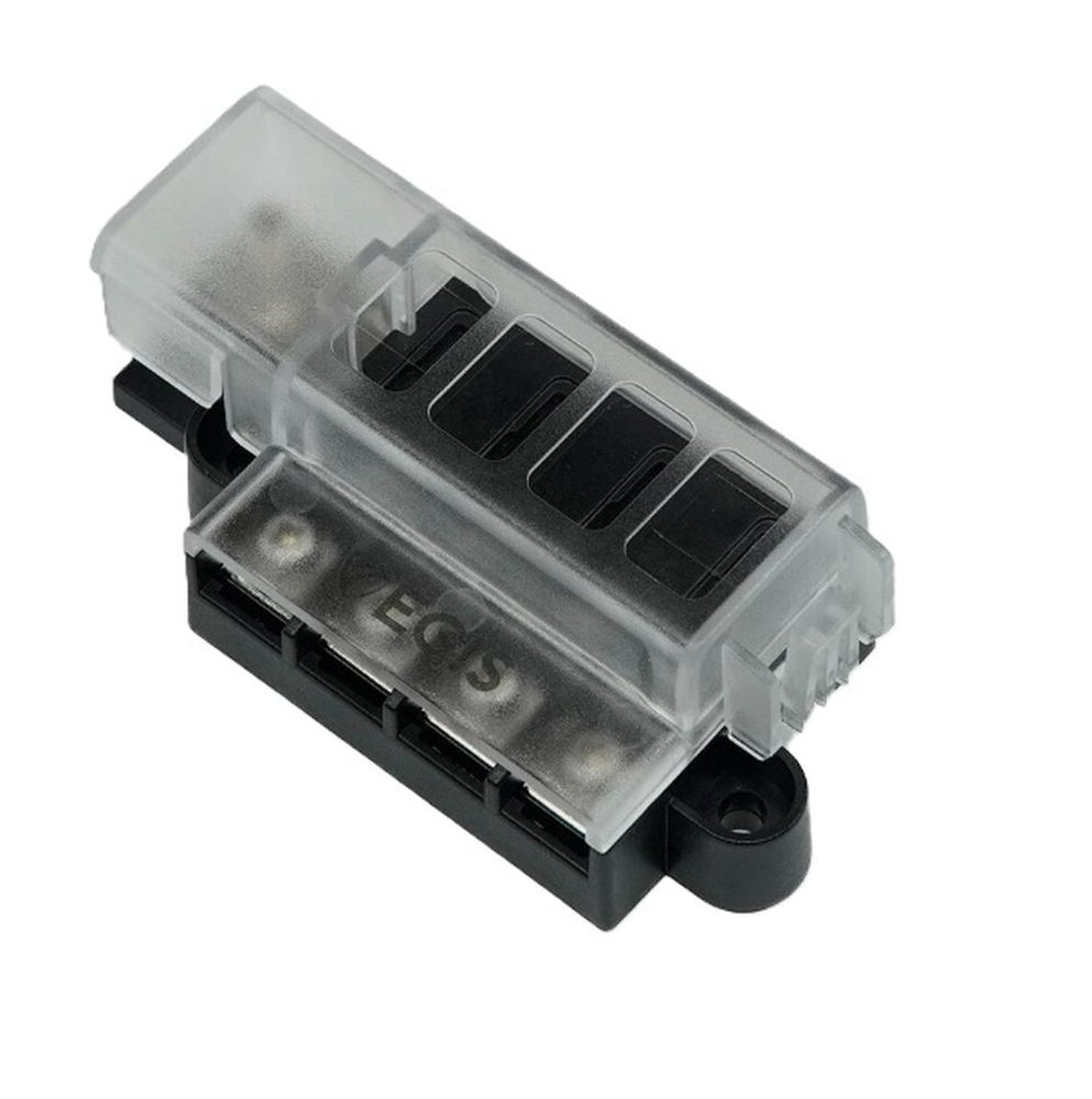

EGIS RT Fuse Block 4 Circuit with Cover

Model: 8045

Stainless Steel Hardware: Self locking stainless steel attachment screws provides vibration resistant secure connections.

Stainless Steel Terminal Stud/Nut: Ensures reliable and corrosion resistant connection to main input current.

Protective Cover: Protects cable terminal edges from inadvertent shorts to each other or ground.

Labels Included: Circuit identification labels included for easy circuit/fuse diagnosis.

Specifications

CONTINUOUS CURRENT Per Circuit (AMPS)	30
Maximum Current (Entire Block) Amps	100
Nominal Voltage	12/24Vdc
MAX VOLTAGE (VDC)	60
Hardware Material	Stainless Steel
Input Terminal Size	M5-0.8
