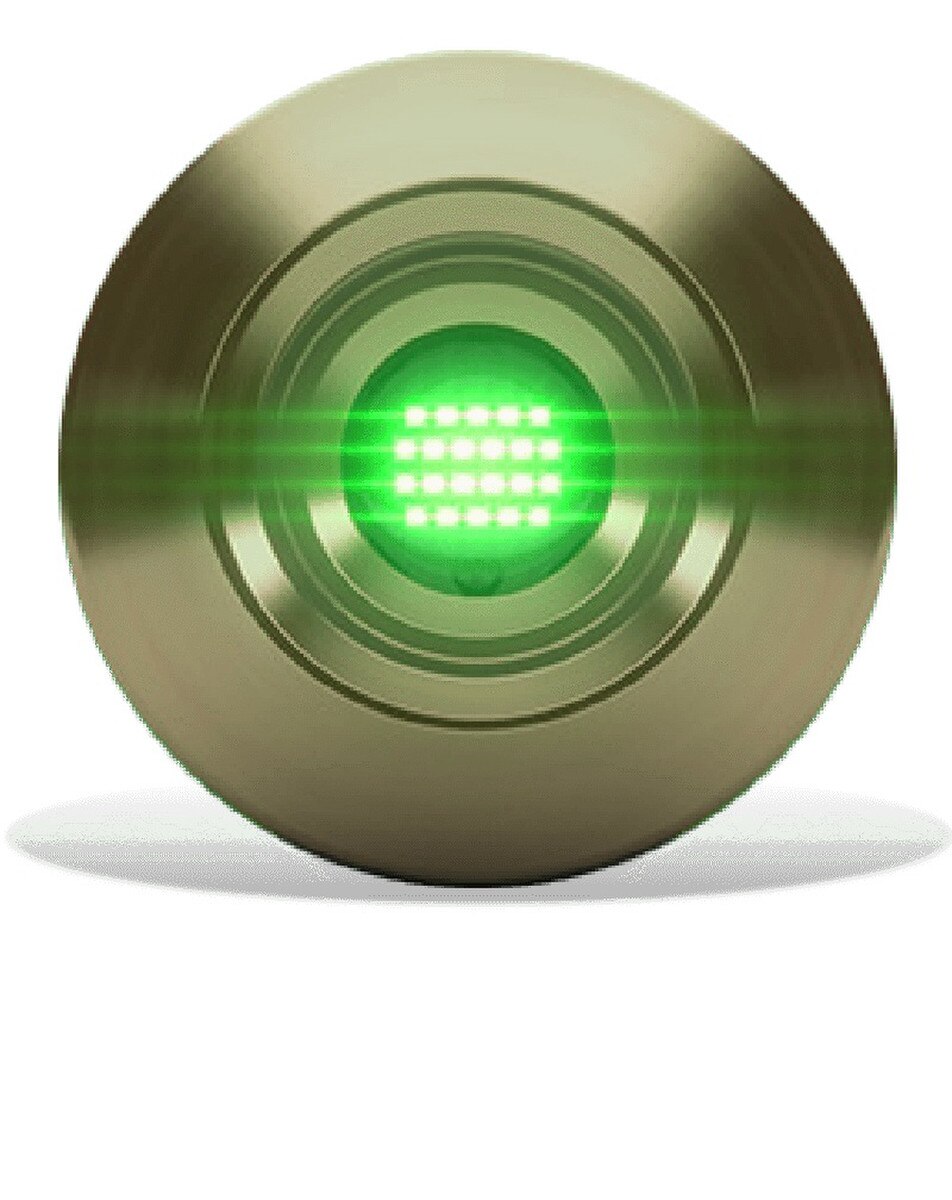

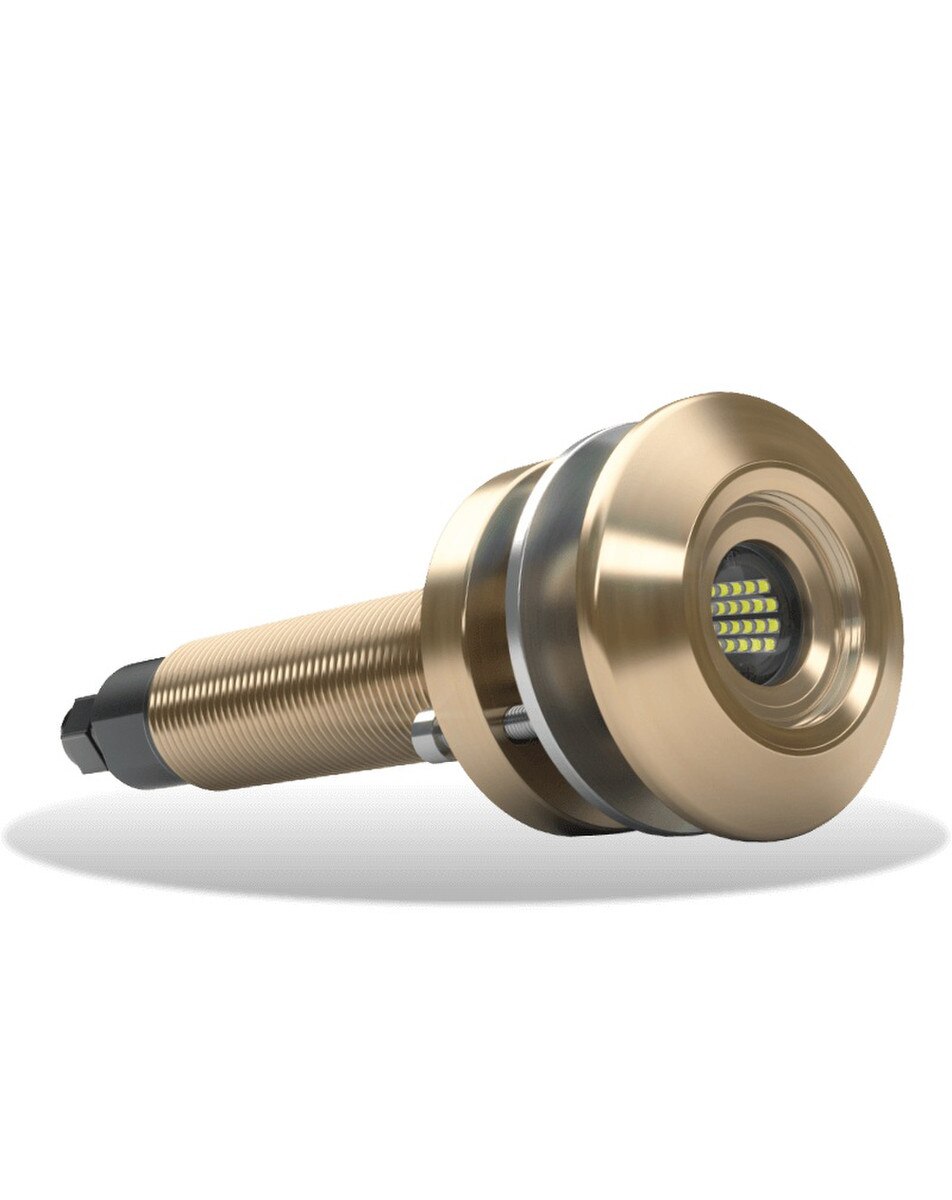

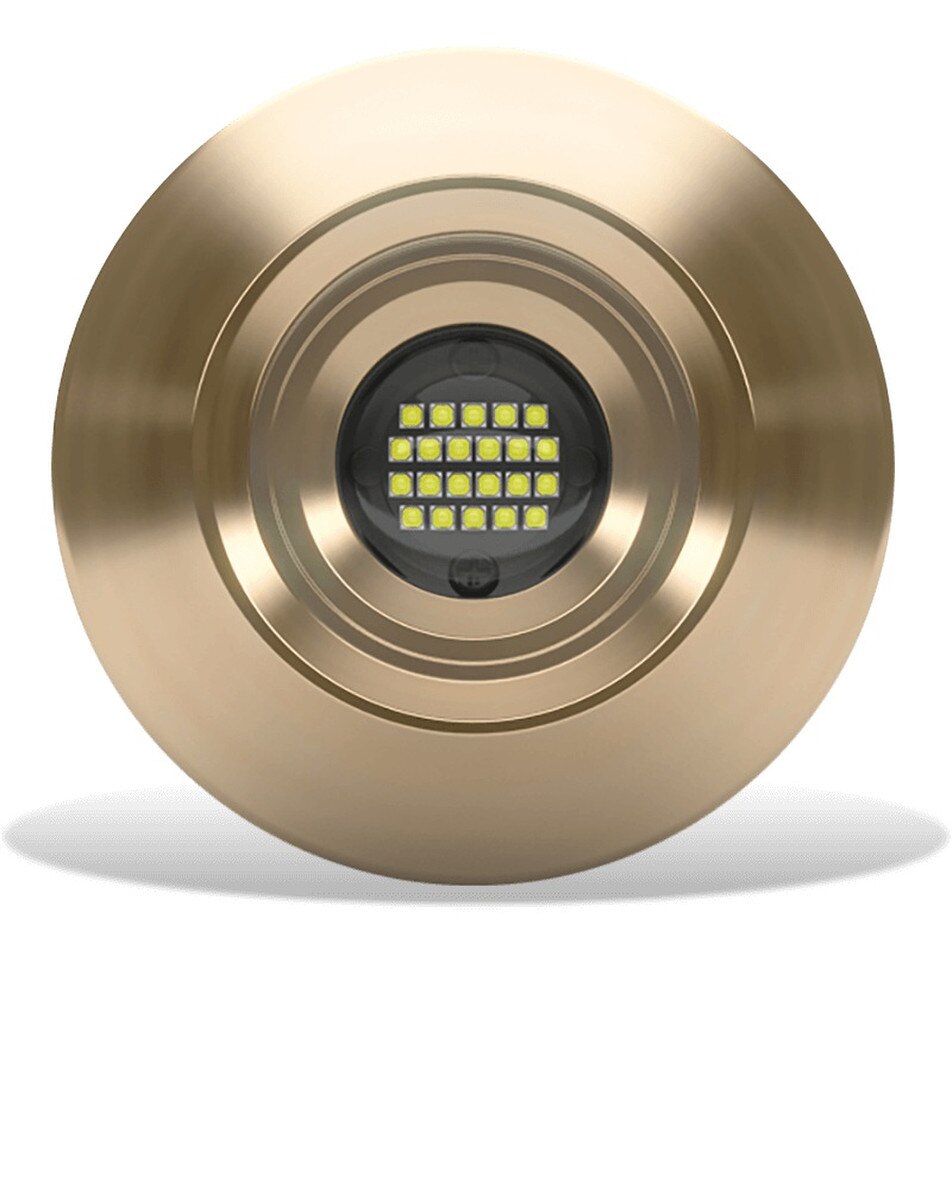

Lumishore ORA TIX204 Interchangeable Flush Fit Mount Green LED

Lumishore ORA TIX204 Interchangeable Flush Fit Mount Green LED

Model: ORA TIX204 / 010-04525-00

The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull.

Available in single color Blue, White or Green with a focused 60 deg beam angle.

TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.

Easily controlled by a standard on/off switch.

Suitable for transom, side and bottom mounting.

Specifications
LED COLOR

GREEN
LUMENS	11,925
VERIFIED FIXTURE LUMENS (WHITE)	5,300
NUMBER AND TYPE OF LED	Green - 22 x 3W High Power LED
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	60 deg
DRIVER	MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE	12/24 V DC
MAX CURRENT DRAW	4.0A/1.9A
HOUSING TYPE	MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS	ON/OFF SWITCH
WARRANTY	3 YEARS

What's in the Box:
