Airmar B75C-0-L 0d Tilt With Mix-n-Match Plug

Details

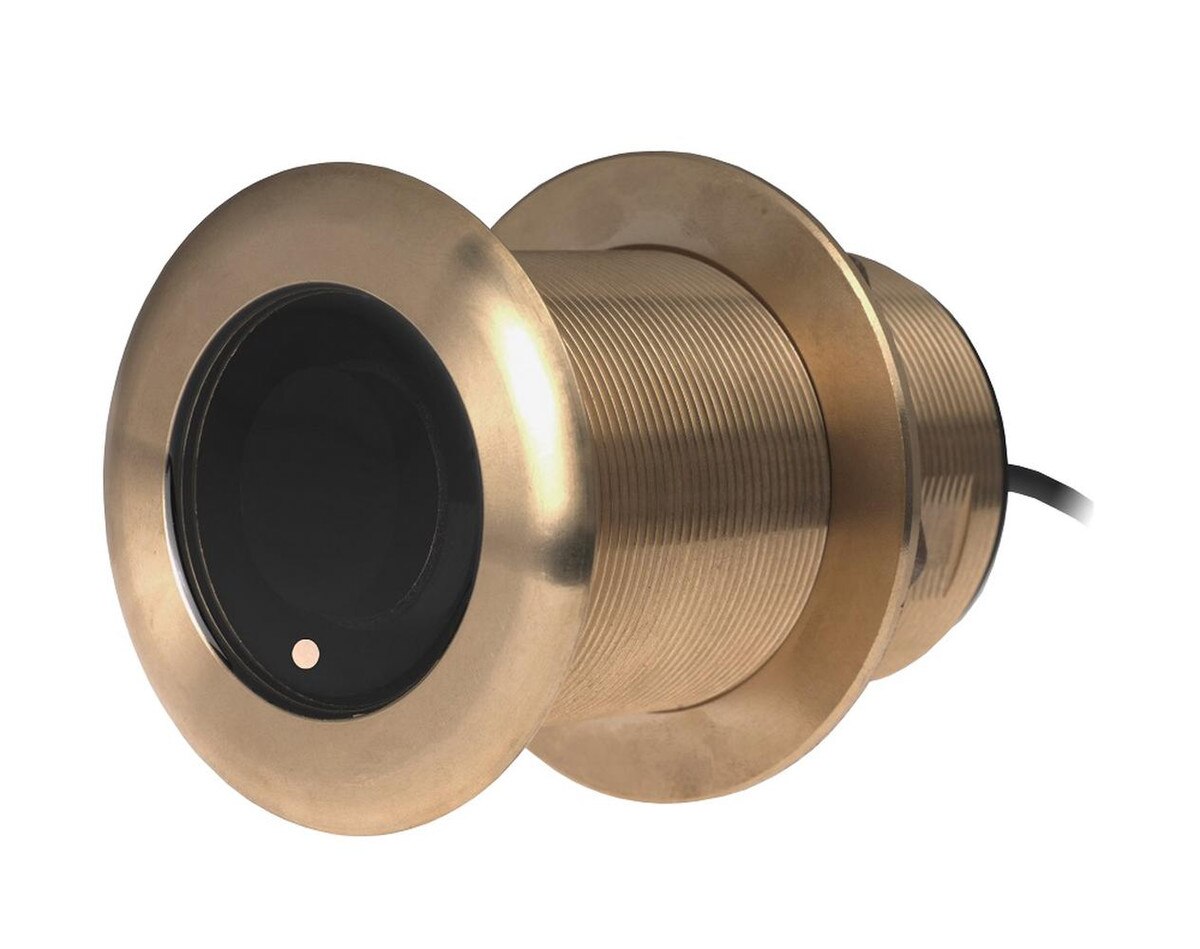

Airmar B75C 0 deg tlted element Low CHIRP Bronze Thru Hull with Mix-N-Match Plug

Model: B75C-0-L-MM

Depth & fast-response water-temperature sensor
35 kHz of total bandwidth from one transducer

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Sound waves will not present as clear a picture of the bottom on the display, but will sound down in very deep areas where high frequency sound waves cannot reach

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications
CHIRP Frequency

40 kHz to 75 kHz
Beamwidth	32 deg to 21 deg
Element tilt	0 deg
Deadrise	0 deg to 7 deg
Maximum depth	1200ft
Power	300 Watts

What's in the Box:

B75C-0-M-MM
