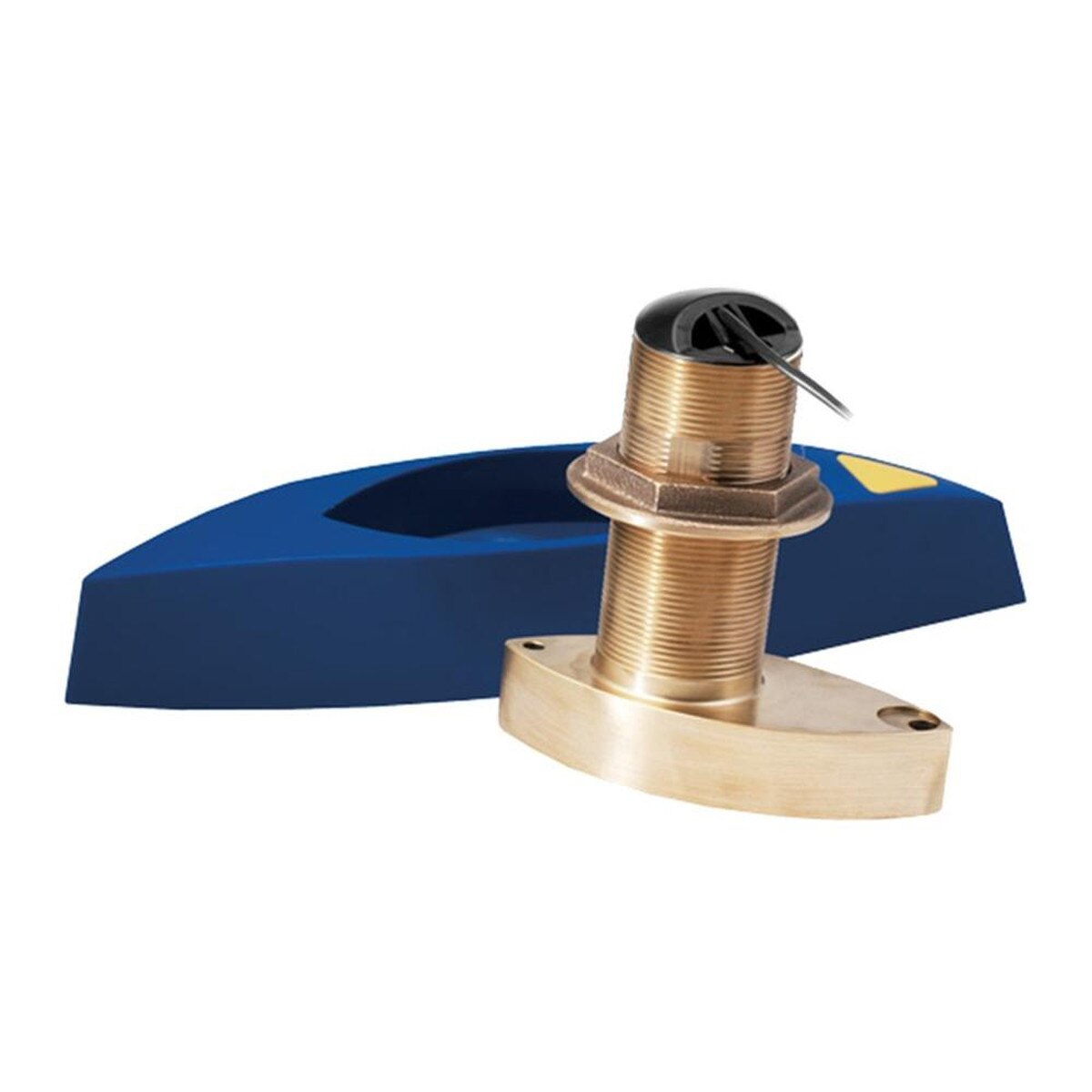

Airmar B785C Triducer Medium CHIRP with Furuno 10-Pin Mix-N-Match Cable
Model: B785C-M-10F- Depth & fast-responDepth and fast-response water-temperature sensing
- 600 W of power
- Medium frequency: 80 to 130 kHz
- 24 deg to 16 deg beamwidth
- Maximum depth of 274 m (900 feet)
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
- Recommended for use on planing or displacement hull
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Patented Xducer ID(R) technology
The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900 feet) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
SpecificationsCable-Length
| 9 m (30ft) | |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24 deg with fairing |
| Display Connector | Furuno 10-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24 deg-16 deg |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75) |
What's in the Box:
- B785C-M-MM Triducer
- Fairing Block
- Anti-rotation Bolt
- MMC-10F cable "
