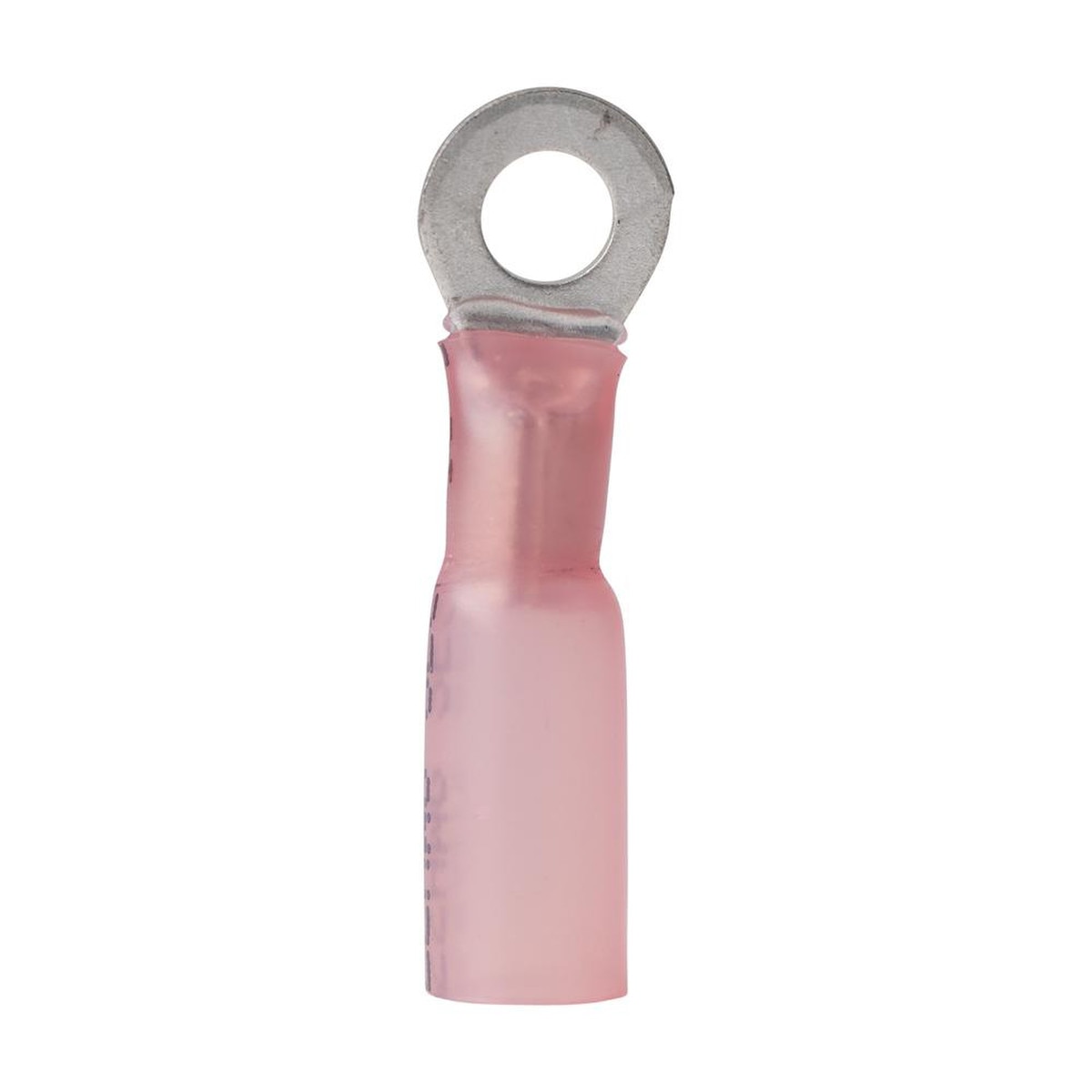

Ancor 22-18 #10 Ring Terminal Heat Shrink Red 100 Pack
Details
Details
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine GradeTM resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg F/125 deg C.
- Operating temperature range 40 deg C to 110 deg C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
| 100 | 312399 | |||
| 12-10 | 3-5 | #8 | 100 | 312299 |
| 12-10 | 3-5 | 3/8 | 100 | 312699 |
| 12-10 | 3-5 | 5/16 | 100 | 312599 |
| 12-10 | 3-5 | 1/4 | 100 | 312499 |
| 16 - 14 | 1-2 | 1/4 | 100 | 311499 |
| 16 - 14 | 1-2 | 5/16 | 100 | 311599 |
| 16 - 14 | 1-2 | 3/8 | 100 | 311699 |
| 16 - 14 | 1-2 | #8 | 100 | 311299 |
| 16 - 14 | 1-2 | #10 | 100 | 311399 |
| 22 - 18 | 0.3-0.8 | #10 | 100 | 310399 |
| 22 - 18 | 0.3-0.8 | #8 | 100 | 310299 |
| 22 - 18 | 0.3-0.8 | 3/8 | 100 | 310699 |
| 22 - 18 | 0.3-0.8 | 6.4 | 100 | 310499 |
