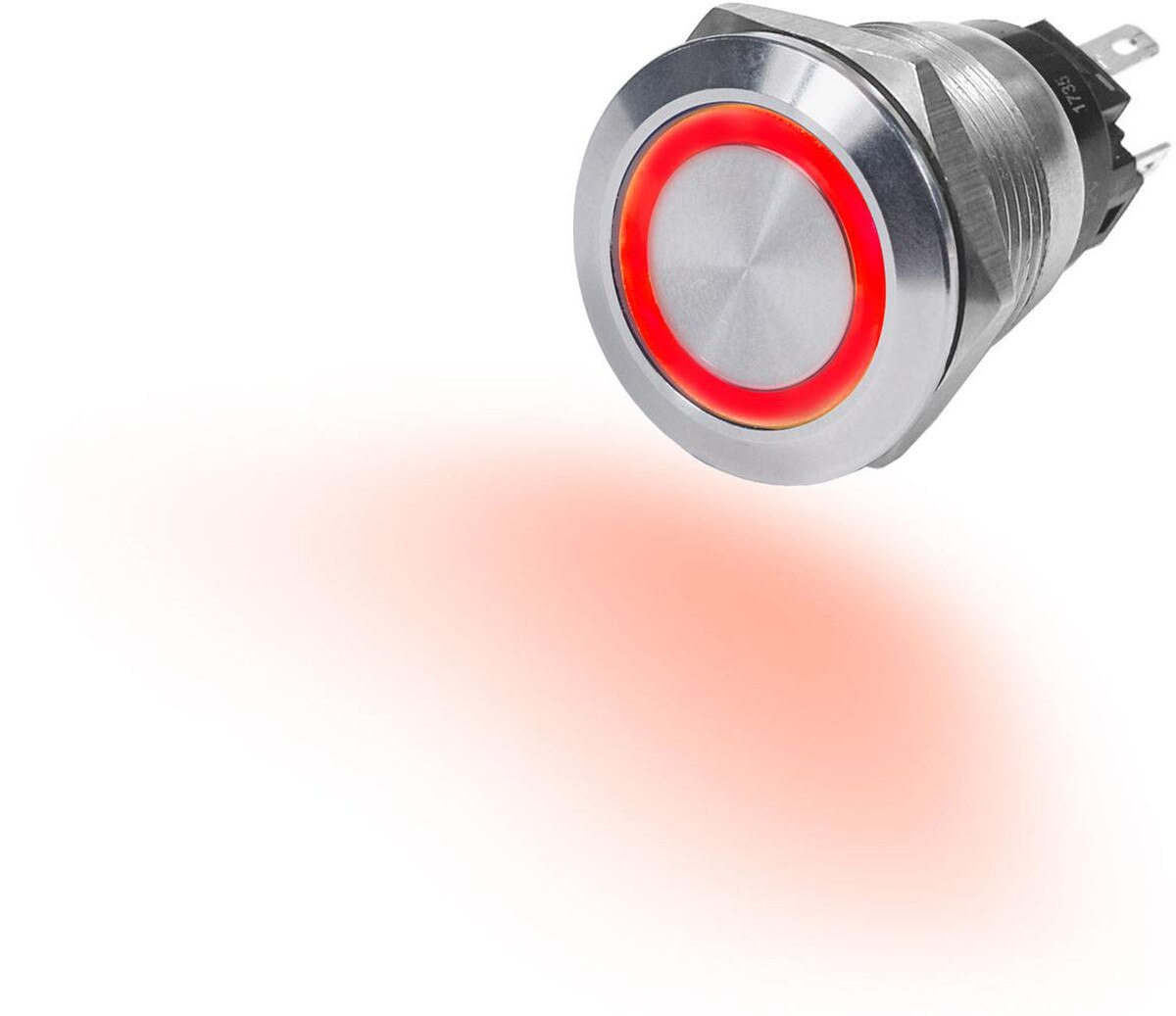

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On

Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On

Model: 4163-BSS

• 10A continuous
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications
Action

OFF-(ON)- Momentary One
Amperage	10A @ 12V DC Resistive 3A @ 12V Inductive
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Minimum Operating Temperature	-10 deg C
Maximum Operating Temperature	70 deg C
Minimum Storage Temperature	-55 deg C
Maximum Storage Temperature	85 deg C
Illumination	Independent - Separate contacts for LED power
Max Panel Thickness	0.31in (7.87 mm)
Mounting Hole	3⁄4 in (19mm)
Switching Cycles	40,000
Termination	5 - 0.110inch Quick Connect terminals
