Blue Sea Terminal Block 30A 12 Circuit
Details
Details

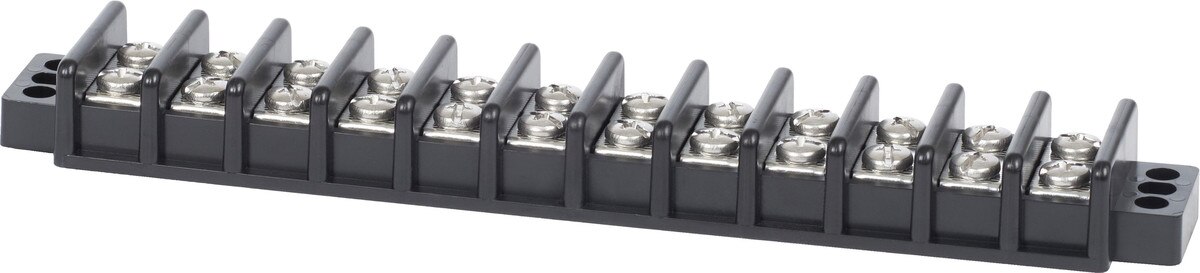

Blue Sea Systems Terminal Block 30A - 12 Circuit
Model: 2512-BSS- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Circuits
| 12 | |
| Length | 7.75in (196.85 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
