Garmin GT54UHD-TM Ultra HD Transom Mount Transducer

Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Model: 010-12909-00

• One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
• High wide CHIRP traditional sonar provides remarkably clear target separation and definition
• See incredibly detailed images of fish and structure up to 200 feet below your boat with 800 kHz ClearVü sonar
• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts
• Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500 feet

The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 - all in one transducer.

Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200 feet below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500 feet. It's easy to install with included transom and trolling motor mounts so you can start fishing faster.

1For use with GPSMAP(R) 8400xsv/8600xsv chartplotter/sonar combos

Specifications
Traditional CHIRP

CHIRP High Wide (150-240 kHz)
Ultra High-Definition ClearVü	0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü	1.2 MHz (1,200 kHz), CHIRP range: 1,080-1,230 kHz
SideVü	455 kHz, CHIRP range: 425-485 kHz
Power
Traditional CHIRP	350 W
Ultra High-Definition ClearVü	350 W
Ultra High-Definition SideVü	350 W
SideVü	350 W
Beamwidth
Traditional CHIRP	Adjustable from 16 deg to 24 deg in 1 deg steps
Ultra High-Definition ClearVü	0.94 deg x 60 deg
Ultra High-Definition SideVü	0.64 deg x 52 deg
SideVü	1.62 deg x 50 deg
Maximum depth
Traditional CHIRP	800 feet
Ultra High-Definition ClearVü	200 feet
Ultra High-Definition SideVü	125 feet to each side; 250 feet total, at a maximum depth of 30 feet
SideVü	500 feet to each side
Other
Sensors	Depth and Temperature
Number of pins	12-pin (orange connector)
Cable length	20 ft.
Supported deadrise/Transom angles	0 deg-70 deg degree transom

What's in the Box:

• GT54UHD-TM transducer

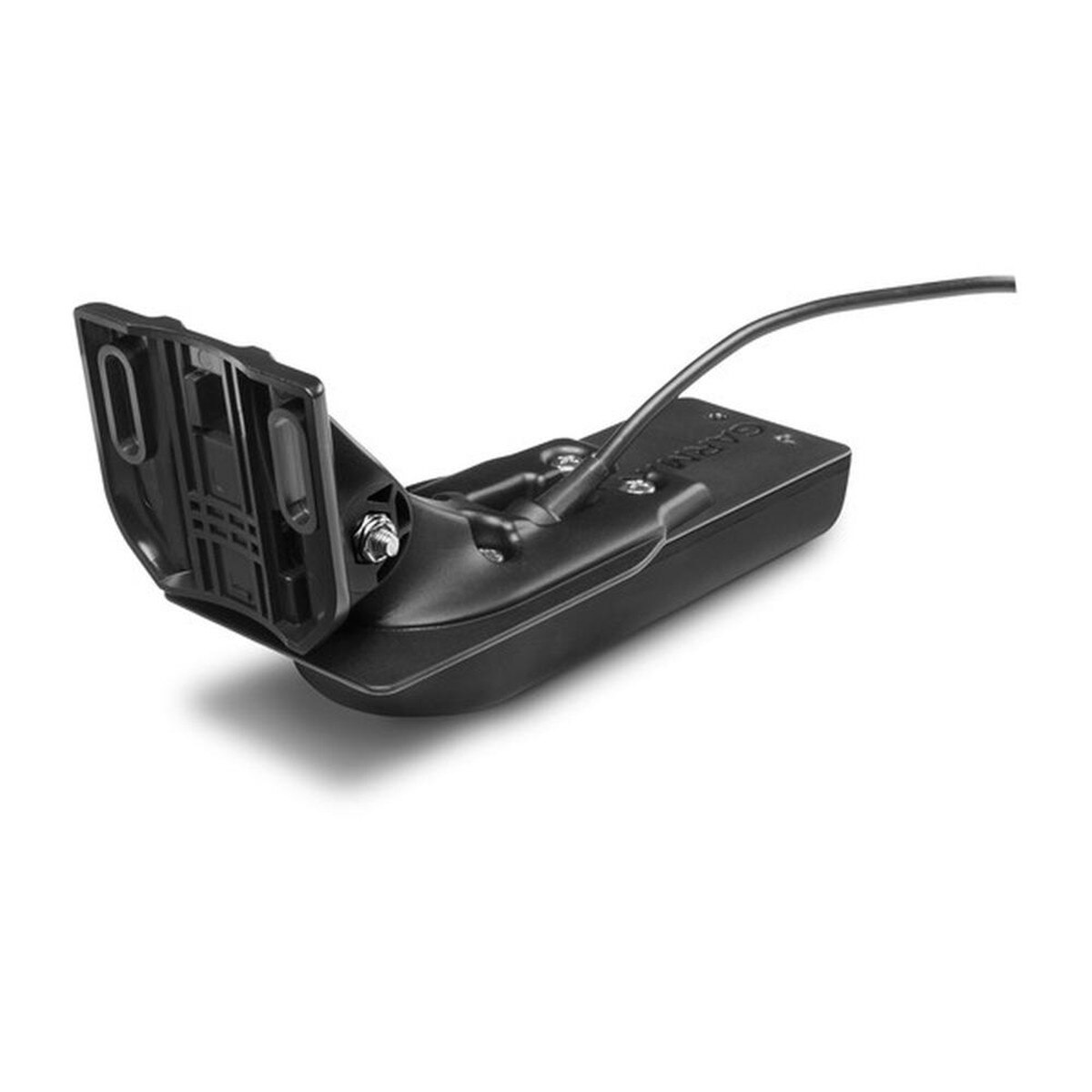

• Transom mount

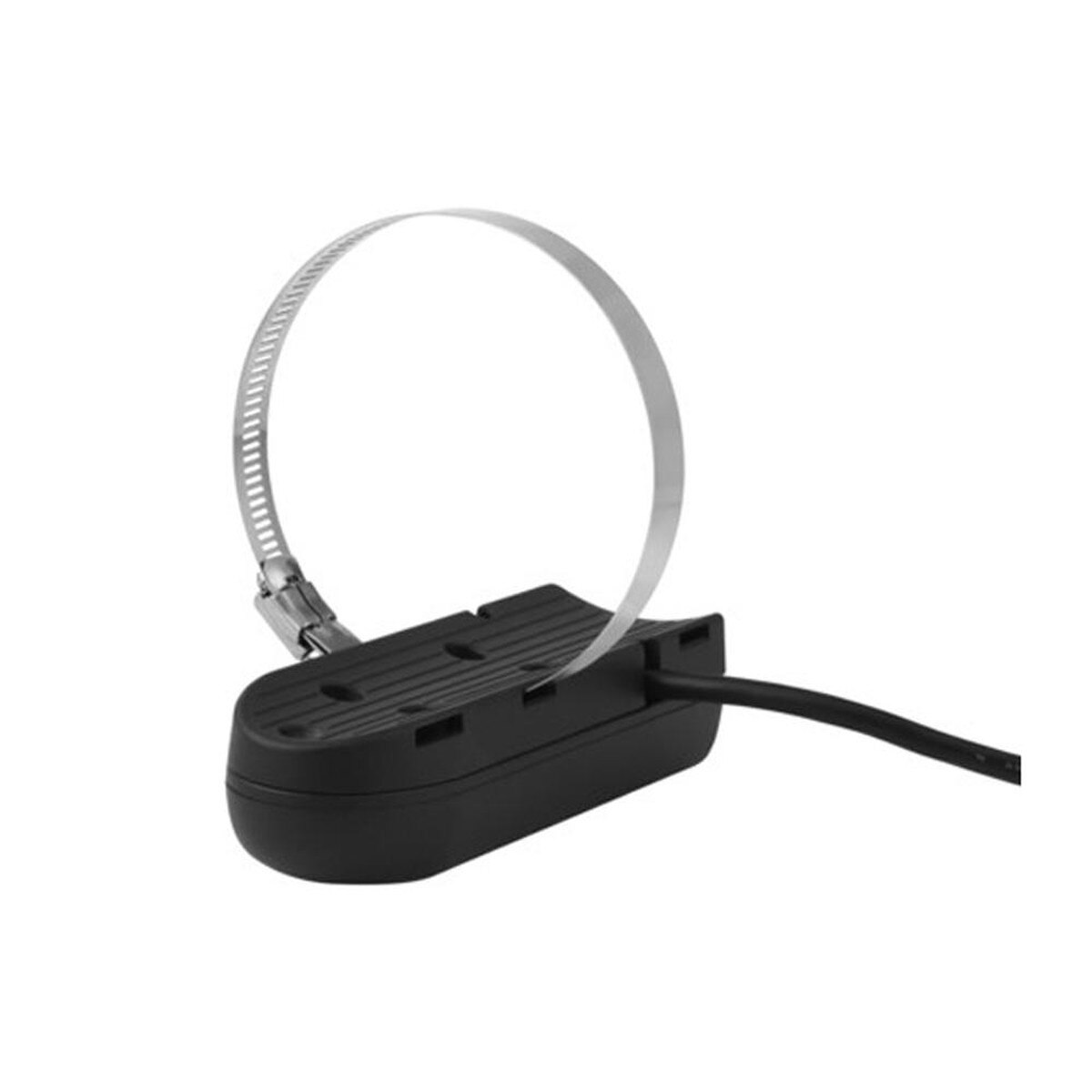

• Trolling motor mount
• Mounting hardware
• Documentation
