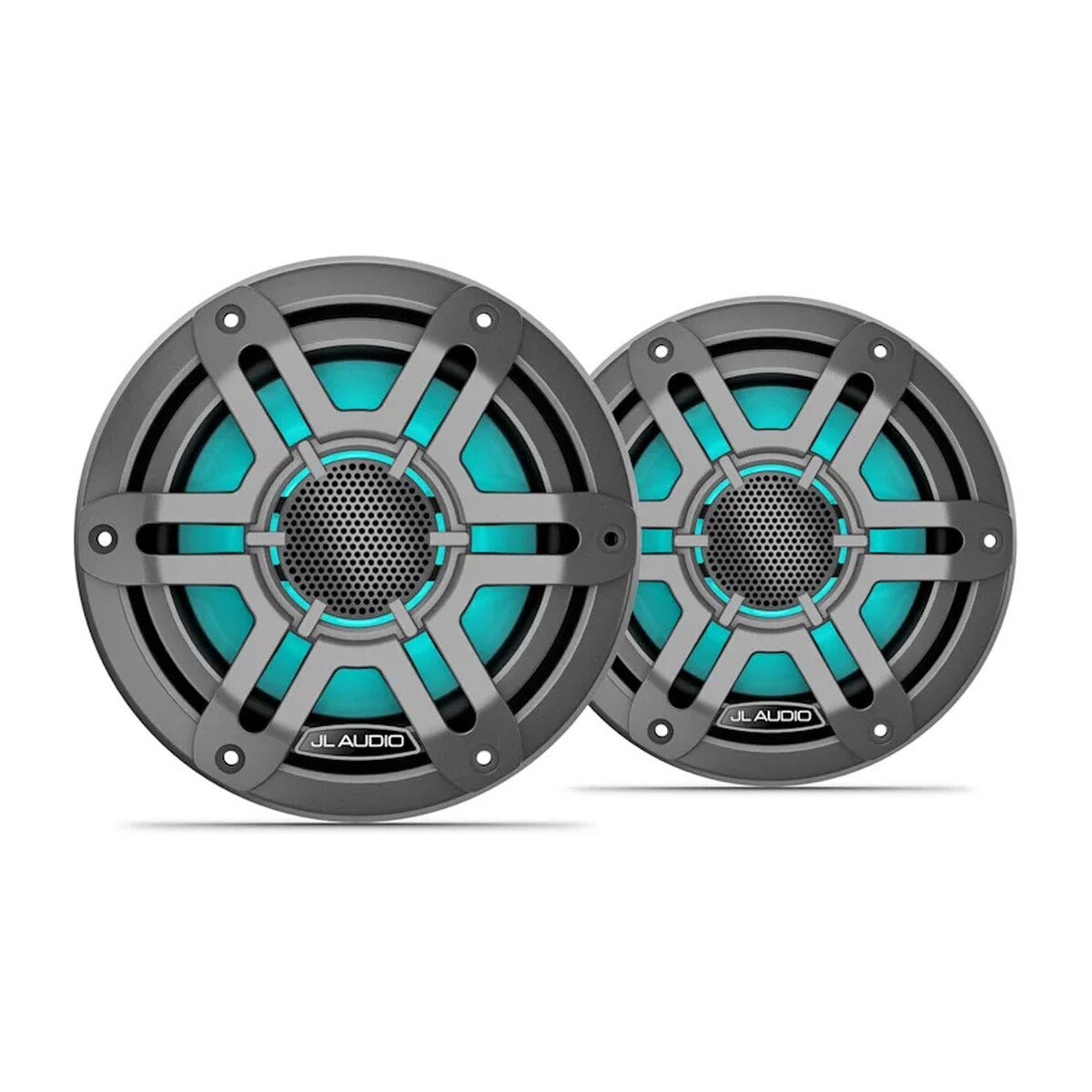

JL Audio M200 6.5in Marine Speaker Pair with LED and Gray Sport Grille
Details
Details
Jl Audio M200 6.5in Marine Speaker Pair with LED and Gray Sport Grille
Model: 010-04753-03
- RGB LED LIGHTING
- SILK DOME TWEETER DELIVERS SMOOTHER SOUND
- INTERCHANGEABLE GRILLE OPTIONS (SOLD SEPARATELY)
- MARINE-GRADE CONSTRUCTION
Enhance your experience on the water with JL Audio M200 speakers, which bring M-series audio for less.
With 50- to 60-watt RMS power handling, these speakers deliver loud, clean sound with less distortion.
A bridge-mounted 1-inch edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling delivers a smoother and warmer sound for all your cruises.
Match the look of your vessel with white or gray color options along with interchangeable grilles (sold separately).
Sail to your heart’s content knowing that your speakers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun.
Enhance your audio experience with a wide spectrum of colors. Pair with the Garmin Spectra™ control module (sold separately) for advanced lighting control from your compatible chartplotter or ActiveCaptain® app.
Specifications
| General | |
| Warranty | 3 years |
| Color | Gray Sport |
| Physical dimensions (Diameter) | 6.5": 6.90" (175 mm) |
| Physical dimensions (Depth) | 6.5": 4.19" (106 mm) |
| Water and dust rating | IPX6 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 50 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 87 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz - 20 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 30 - 100 W/Channel |
| LED lighting | yes, RGB |
| LED supply voltage | 10 - 14.4 VDC |
| LED load current @ 14.4 VDC (max) | 140 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1" (25 mm) |
| Electrical Features | |
| Compass-safe distance | 6.5": 73" (185 cm) |
| Networking & Connections | |
| Speaker connections | Flying lead with waterproof connector 18 AWG wire |
| LED connection | Flying lead with waterproof connector, 4-conductor 20 AWG wire |
| Mounting Dimensions | |
| Mounting depth clearance | 6.5": 2.83" (72 mm) |
| Frontal grille protrusion | 6.5": 1.30" (33 mm) |
| Mounting hole | 6.5": 5.00" - 5.25" (127 - 133 mm) |
| Bolt hole circle | 6.5": 6.14" (156 mm) |
What's in the Box:
- One pair of speakers with grilles
- Two water-resistant 6-pin connectors (illuminated versions only)
- Mounting screws
- Documentation
