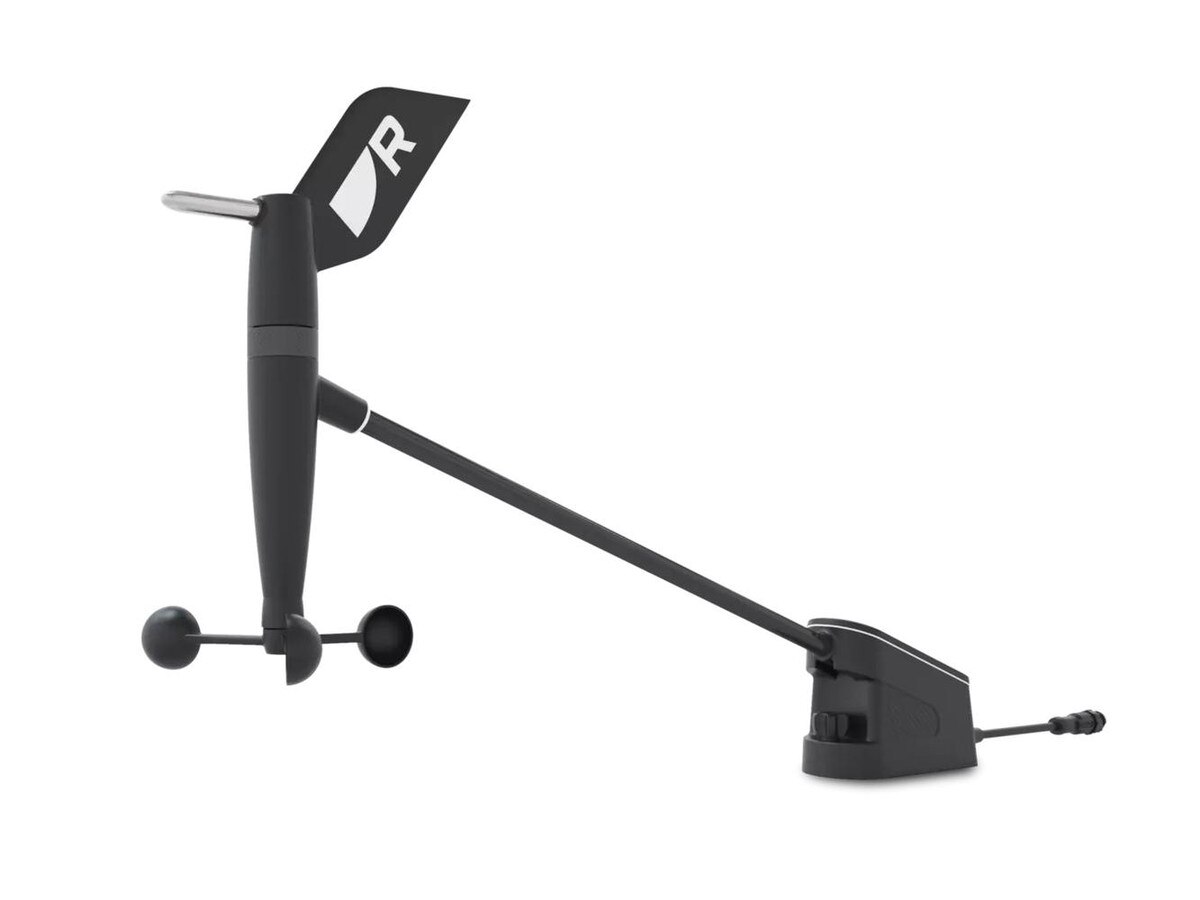

Raymarine RSW Smart Wind Transducer Short Arm 30m Cable

Raymarine RSW Wired, Smart Wind transducer with 30m Cable

Model: E70670

• Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
• Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
• Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

Specifications
Length

Wind transducer (including cable): 657.762 mm (25.90 in)
Width	Wind transducer: 46.96 mm (1.85 in)
Height	Wind transducer: 305.86 mm (12.04 in)
Power
Nominal supply voltage	12 V dc (via SeaTalk NG)
Operating voltage range	9 V to 16 V dc
Power Consumption	< 100 mW
Fuse rating	Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:	1
Environmental
Operating temperature range	-25 degC to +55 degC (-13 degF to +131 degF)
Storage temperature range	-30 degC to +70 degC (-22 degF to +158 degF)
Relative humidity	Masthead: 100%
Waterproof rating	Wind transducer: IPx6/IPx7
Wind	115 mph (185 kph)
Vibration	EN 60945:2002 (exposed)

What's in the Box:

• No.10 x 3/4 self tapping screws x 4 (for mounting the wind transducer)
• No.7 x 3/4 in self tapping screws x 2 (for mounting the gateway)
• 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
• Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
• Mast cable
