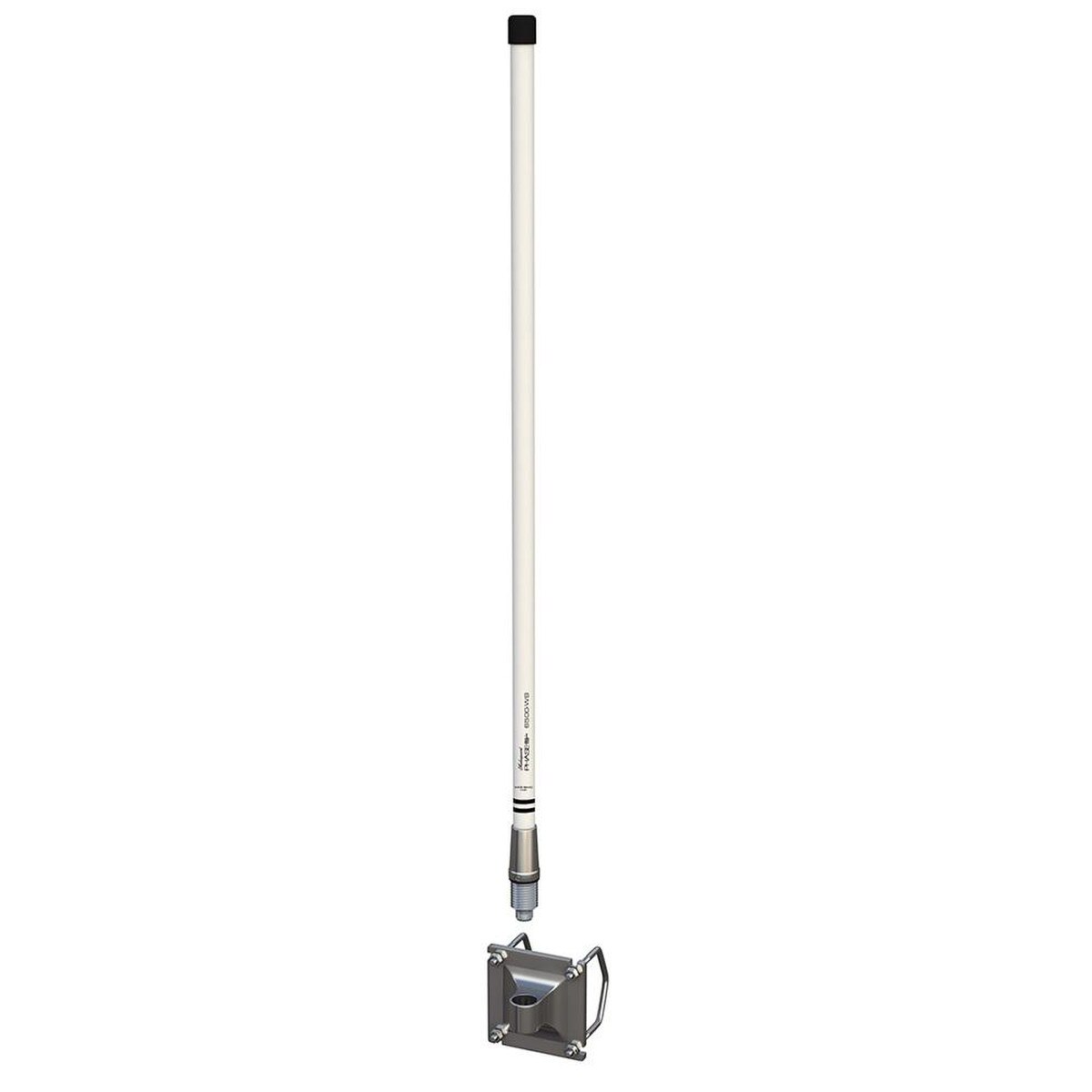

Shakespeare 6500-WB 4ft Broad Band VHF Antenna

Shakespeare 6500-WB 4 feet Broad Band VHF Antenna

Model: 6500-WB

• Stainless steel mounting bracket: corrosion resistant even in marine environments. 3 mounting options
• Patent pending mount design: install the U-bolts without removing hardware - no more lost hardware
• Detachable antenna: handle mounting bracket easily without the weight of the antenna. Also, mount it on a large variety of Shakespeare(R) mounts with a 1 in-14 thread*
• IP67**, high wind rating, wide temperature range, and PU Coating: built to last in rain, sun, ice, dust, water splashes and even corrosive marine environments

Built for maximum performance, this 4 feet broad band antenna is designed to endure the harsh environment and communication requirements in commercial, law enforcement and disaster management applications. Whether you install it on a vessel, base station, or a stationary platform, this antenna provides a host of mounting options to fit your need. No tuning or ground plane required. Cable not included.

*Requires a Shakespeare 4006 double female ferrule (not included).

**When installed as instructed.

Specifications
Frequency

156-162 MHz, VSWR < 1.5:1 145-165 MHz, VSWR < 2:
Nominal Impedance	50 Ohm
Input Power Rating	100 Watts, continuous
Gain	3dB
Polarization (Pattern)	Vertical (Omnidirectional)
Connector	UHF Female (SO-239 type)
Recommended Cable	RG-8/U, RG-213/U or similar
DC Ground	Yes
Wind Rating	125 mph (55m/s)
Ingress Rating	IP67**
Temperature Range	-67 deg F to 160 deg F (-55 deg C to 71 deg C)
Finish	White, high-gloss, non-yellowing polyurethane finish

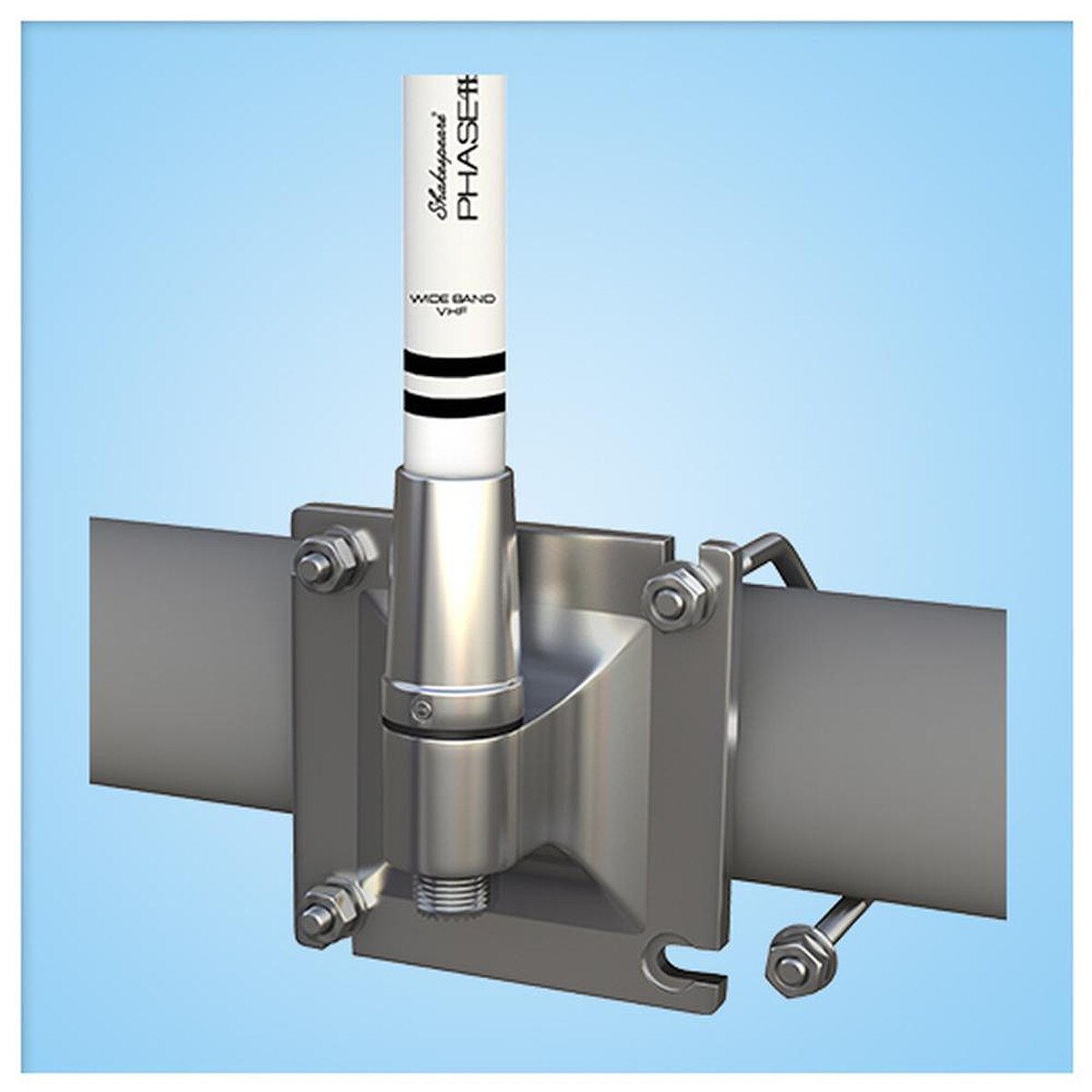

Mounting	Stainless steel mounting bracket with U-bolts, for mounting on mast, rails, or screwed directly onto bulkheads
