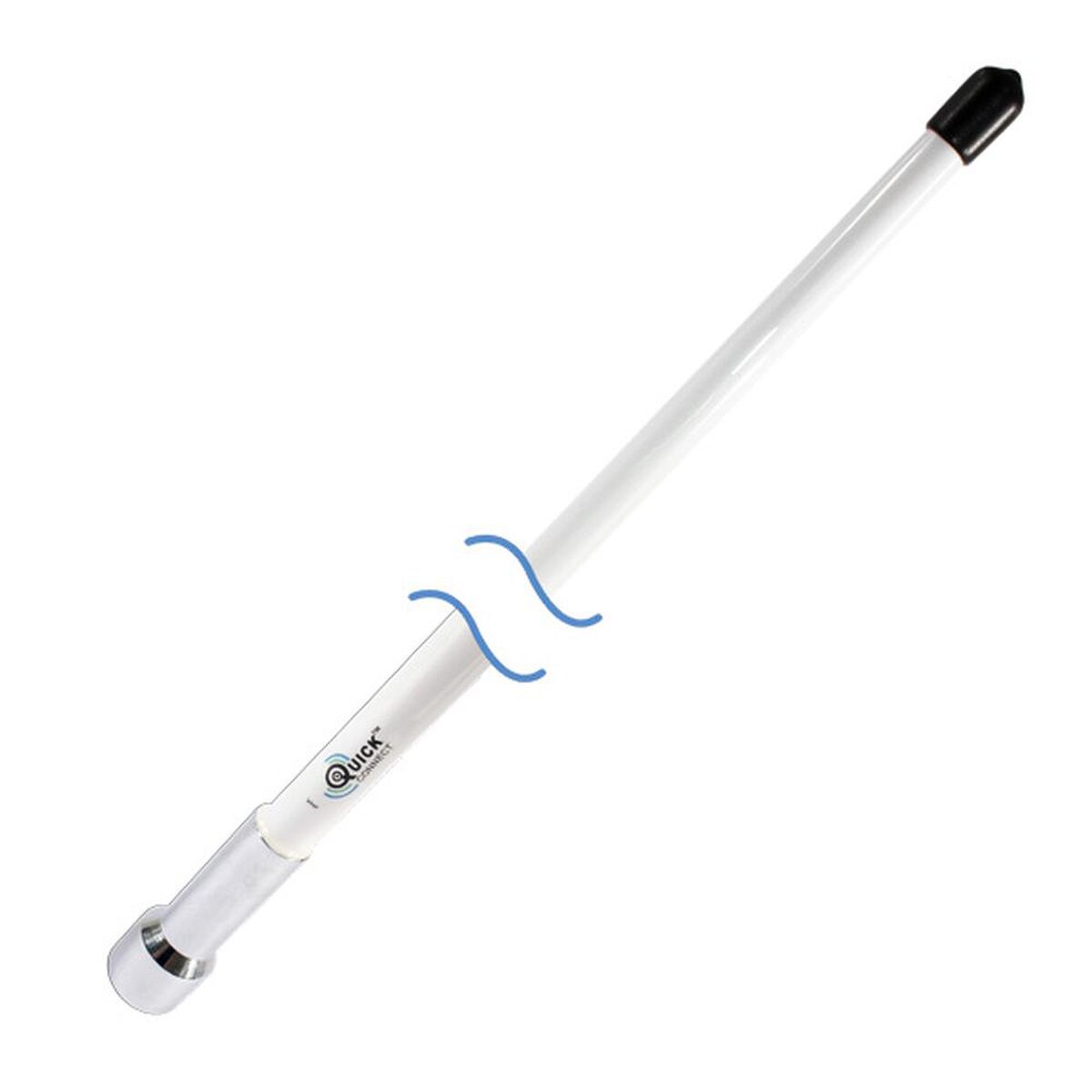

Shakespeare Quick Connect 4ft VHF Antenna Chrome Ferrule Packed in Tube

Shakespeare Quick Connect 4 feet White Fiberglass VHF Antenna - tubed

Model: QC-4T
UPC: 719441172992

• QuickConnectTM system, screw or unscrew antenna to disconnect or connect
• High quality connection so that no noise is generated due to vibrations
• Splash protection cap to protect the connector on the mount when antenna is disconnected
• Centerpin(R) PL-259 Connector is an easy crimp-on type connector
• Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount

Stemming from the popularity of the quick connecting feature on Shakespeare's high-end Phase III(R) marine antennas, the new QuickConnectTM product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.

Must use Quick Connect Series Mounts

Specifications
Band

Marine VHF
Antenna gain	3db
Maximum input power	50 watts
SWR	Nominally 1.3:1 at 156.8 MHz
Bandwidth	5 MHz within 2.0:1 VSWR
Ferrule	Chrome-Plated Brass
Coax supplied	None
Connector supplied	None
Color/finish	White Fiberglass
Polarity	Vertical
Impedance	50 Ohms (with QC Mount attached)
DC Ground	No DC Ground - The antenna will read open on continuity test.
