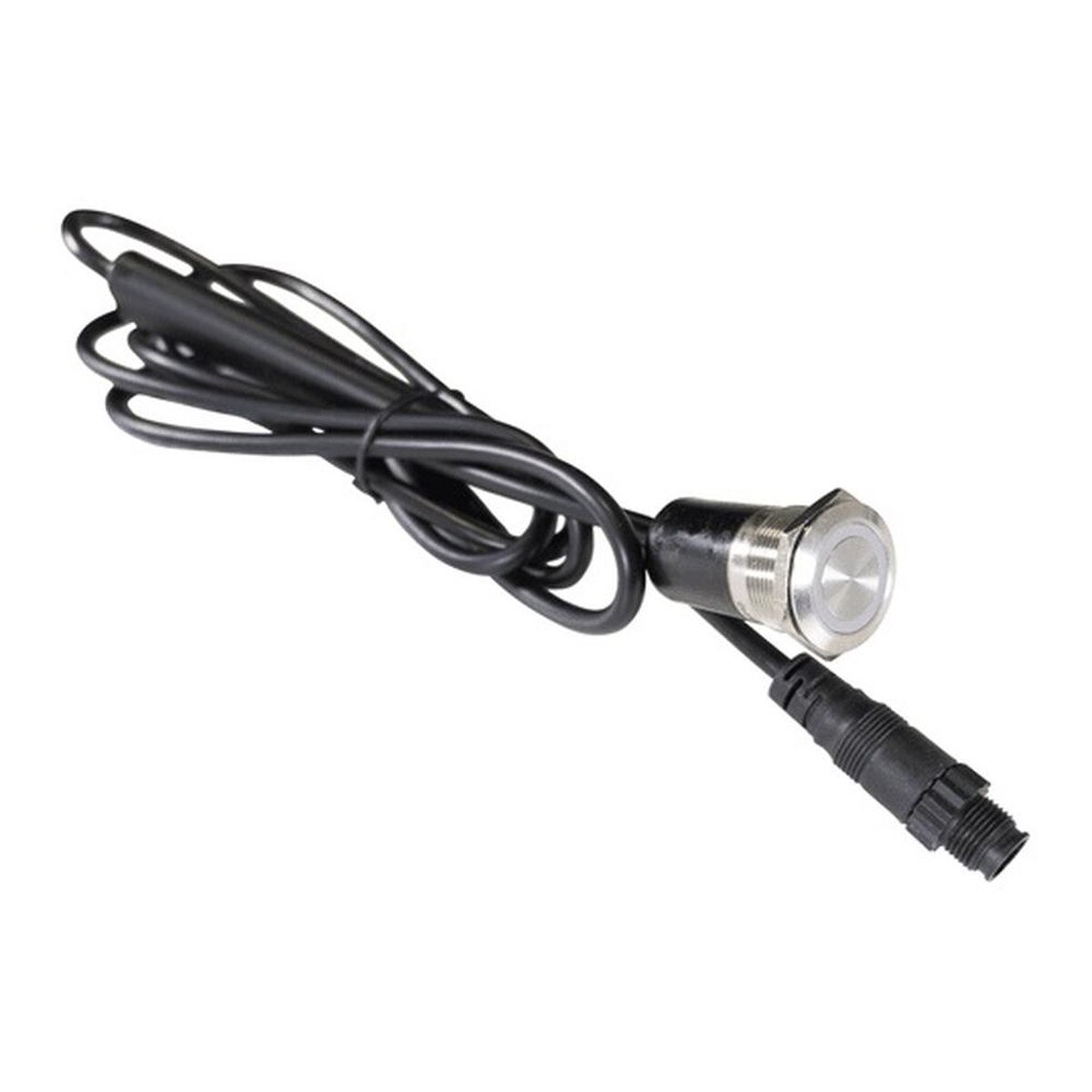

Simrad NMEA2000 Remote MOB Button

Simrad NMEA2000 Remote MOB Button

Model: 000-15940-001

• Easy to install with plug 'n play installation
• Compatible with NMEA2000(R) (MOB) Notification standard - PGN 127233
• Compatible with Lowrance(R), Simard(R) and B&G(R) MFD's & instrument displays
• Automatically creates a MOB waypoint and provides navigation data to the MOB position
• Dedicated graphical MOB pages on TritonTM 2, H5000 Graphic & Nemesis(R) displays
• When combined with an H5000 CPU, the CPU will calculate a dead reckoned position of the MOB
• Conforms with World Sailing Offshore Safety Requirements [4.22.2]

This simple to install remote button allows for convenient placement for an emergency Man-Over-Board (MOB) button, which will trigger alerts across a NMEA2000(R) system and devices. Pressing the button will automatically create a MOB waypoint and provide navigation data to reach the MOB position.

The button is compatible with Lowrance HDS(R) Live, EliteFS(R) and HDS(R) Carbon Chartplotters/Fishfinders. Simrad(R) NSOTM, NSSevo3TM and NSSevo3STM, GOTM and NSXTM Chartplotters and Multifunction Displays, B&G Zeus(R) 3 and 3S, VulcanTM chartplotters, and TritonTM 2, H5000 and Nemesis(R) instrument displays, which also feature a dedicated graphical MOB page. When combined with a B&G H5000 Sailing Processor, the Processor will calculate a dead reckoned position of the MOB position. This safety accessory also conforms with the World Sailing Offshore Safety requirements.

Specifications
Operating temperature

-15 degC to +55 degC (5 degF to 131 degF)
Waterproof rating	IP67
Power supply voltage	12 V DC
Operating voltage	9 V DC - 18 V DC
Power consumption	1 LEN, 0.39 W (28 mA at 13.8 V)
Reverse polarity protection	Yes
NMEA 2000 PGN TX	127233

What's in the Box:

• MOB Button
• N2K-T-RD - Micro-C T-connector
