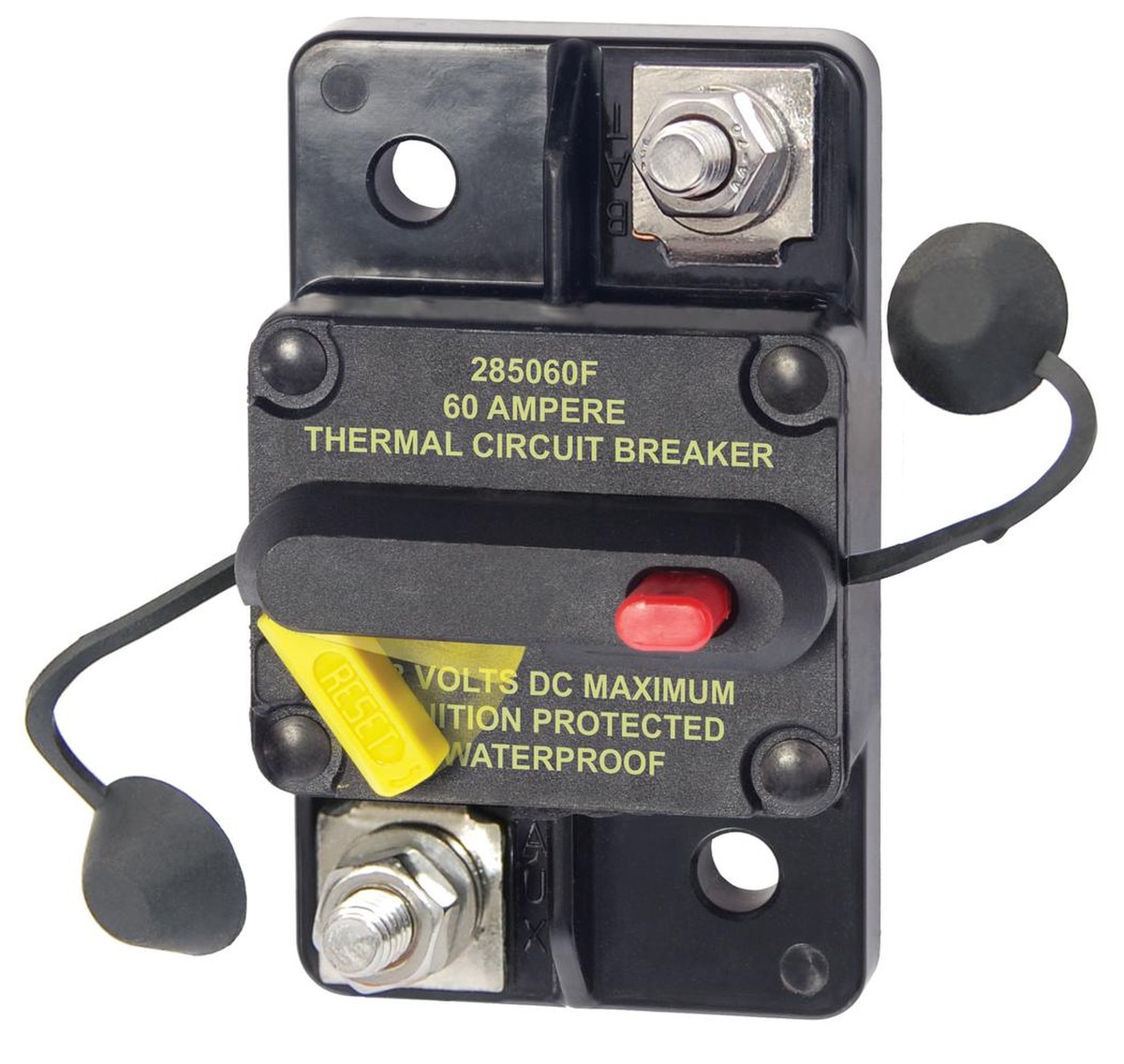

Blue Sea 285-Series 60 Amp Circuit Breaker Surface Mount

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 60A

Model: 7184-BSS

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant
• Combines switching and circuit breaker function into one unit*
• Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage

60A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40 deg C
Maximum Operating Temperature	85 deg C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Terminal Stud	M6 (accepts 1/4 in Ring Terminal)

"
