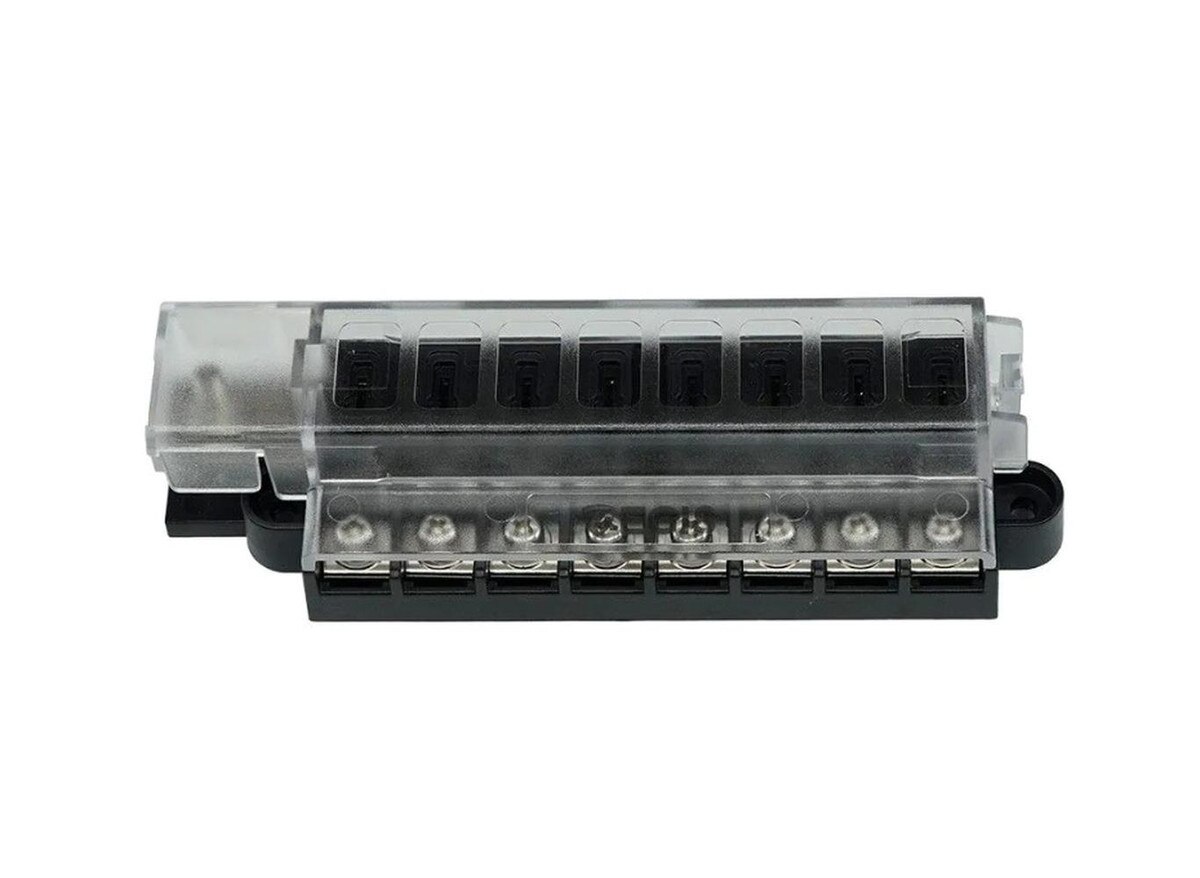

EGIS RT Fuse Block 8 Circuit with Cover

Egis Marine 8046 RT Fuse Block 8 Circuitsm with Cover

Model: 8046

Ignition protected when latching cover is secure for use in engine bay/combustible enviroments
Harsh Enviroment Design with stainless steel self-locking hardware and optional weather-proof labels in standard and customized options
Includes latching protective cover with integrated label recesses.

Compact inline 8 position fuse block has single side wire entry for tight installations spaces.

Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options

Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.

Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.

Supports SAE Circuit Protection Standards for thermal/short circuit events.

Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification

Specifications
CONTINUOUS CURRENT Per Circuit (AMPS)

30
Maximum Current (Entire Block) Amps	100
Nominal Voltage	12/24Vdc
Maximum Voltage	60Vdc
Input terminal size	M5-0.8
