Garmin ECHOMAP UHD2 93sv US Lakes and Rivers GN+ With GT56 Transducer
Model: 010-02688-01
What's in the Box:
Model: 010-02688-01

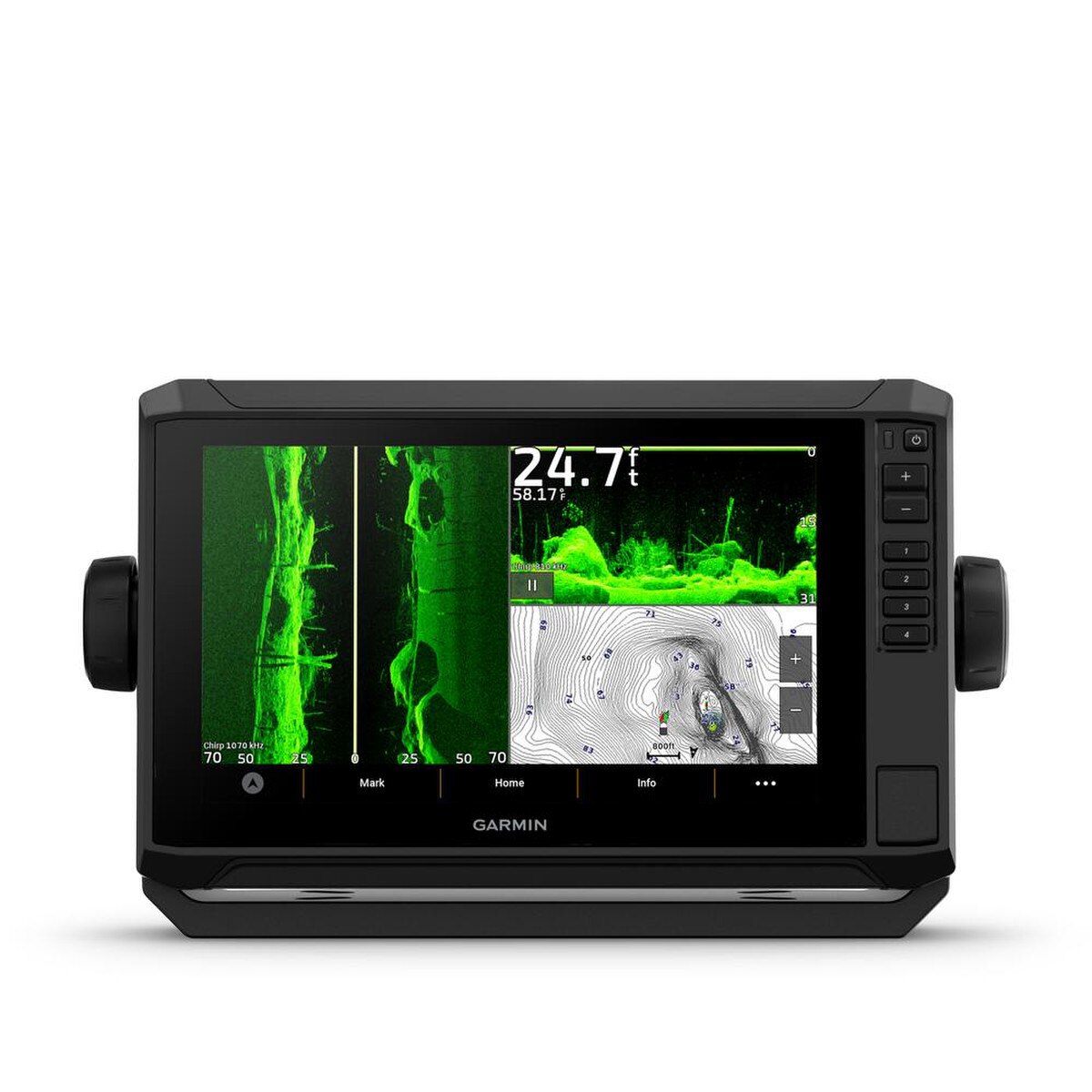

- Easy-to-use 9 in chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle
- Built-in Garmin Navionics+™ inland maps with integrated Navionics® data cover more than 18,000 lakes with up to 1' contours
- Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter
- Wirelessly connects to your Force® trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more
- Included GT56-TM transducer
| General | |
| Dimensions | 10.4 in x 6.5 in x 3.2 in (26.4 x 16.6 x 8.0 cm) |
| Weight | 2.9 lbs (1.3 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display type | WSVGA, TN |
| Display size | 7.8 in x 4.5 in, 9.0 in diagonal (19.8 x 11.5 cm, 22.9 cm) |
| Display resolution | 1024 x 600 pixels |
| Mounting options | Bail or flush |
| Input | Touchscreen with keyed assist |
| Maps and Memory | |
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation routes | 100 |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Built-in Maps | |
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ (inland and coastal) | Yes |
| Garmin Navionics+ (coastal) | Yes |
| Garmin Navionics+ (inland) | Yes |
| Tide tables | Yes |
| Optional Map Support | |
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| ActiveCaptain® compatible | Yes |
| Sailing features | Yes |
| Electrical Features | |
| Power input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1.72 A |
| Maximum current draw at 12 Vdc | 3.5 A |
| Maximum power usage at 10 Vdc | 20.7W |
| Sonar Features | |
| Displays sonar | Yes |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |

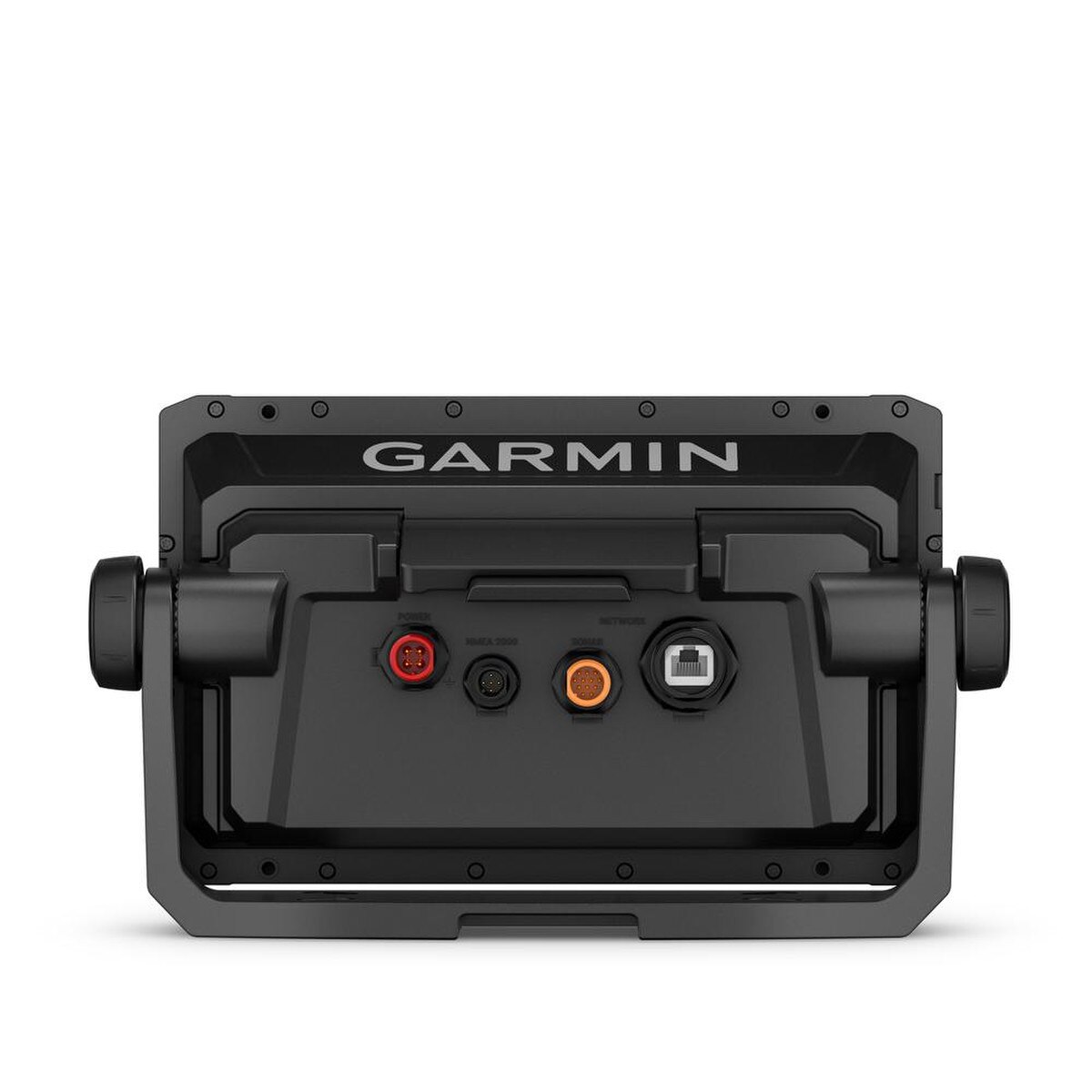

| Networking and Connections | |
| NMEA 2000® ports | Yes |
| Garmin Marine Network ports | 1 |
| 12-pin transducer ports | 1 |
| Bluetooth® pairing | Yes |
| ANT® (connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
What's in the Box:
- ECHOMAP™ UHD2 93sv chartplotter
- GT56-TM transducer
- Power cable

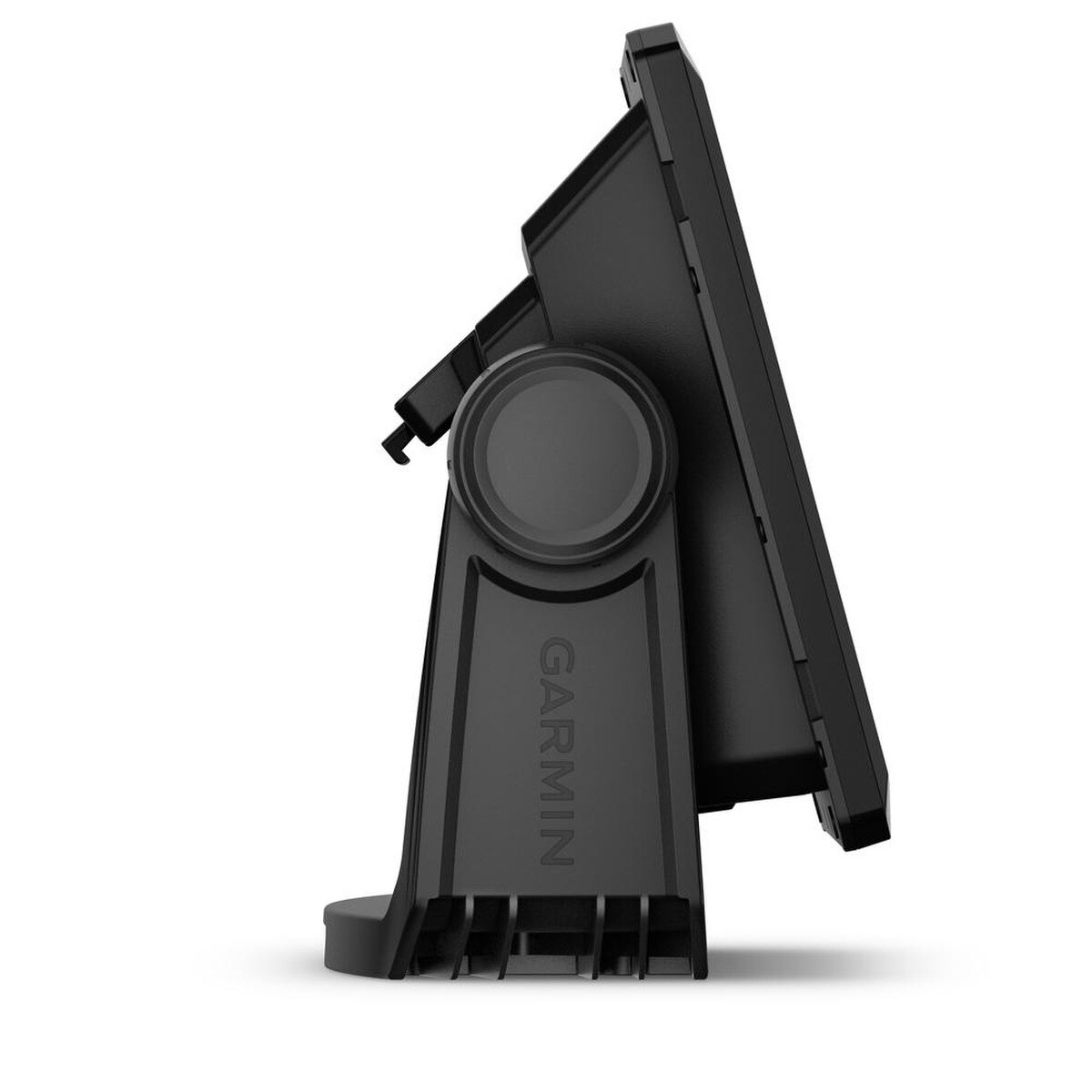

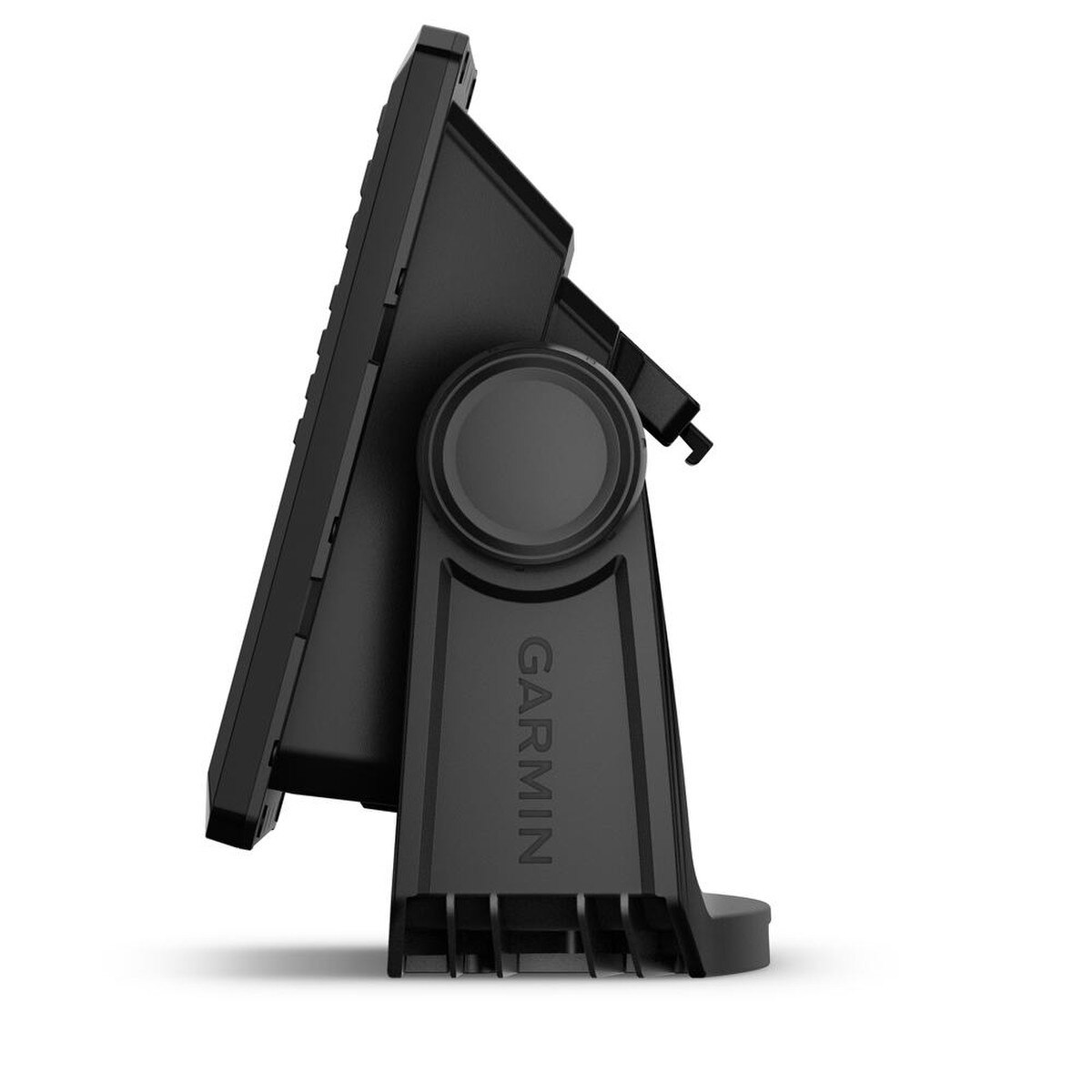

- Tilt mount with quick-release cradle
- Protective cover
- Hardware
- Documentation
