Simrad NSS16 evo3s Combo MFD With C-Map US Enhanced Map

Simrad NSS evo3S 16in Display

Model: 000-15404-001

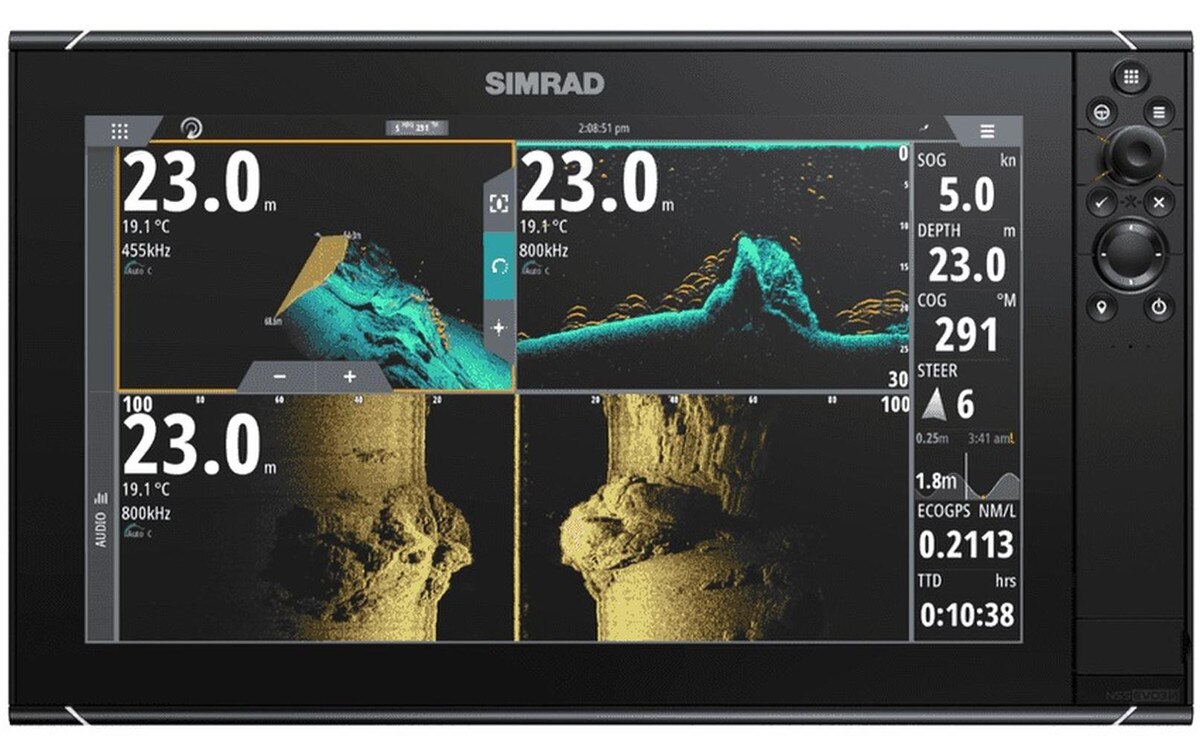

• High Resolution, High Bright, SolarMax IPS Displays
• Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
• Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
• Take another step forward with Simrad's premium network modules for the ultimate offshore performance
• Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
• Low profile glass dash styling
• Built in Wi-Fi connectivity
• Next Generation Processor
• SolarMAX IPS Display Technology
• Multi-touch screen and keypad hybrid control
• Built-in Advanced Echosounder

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

Specifications

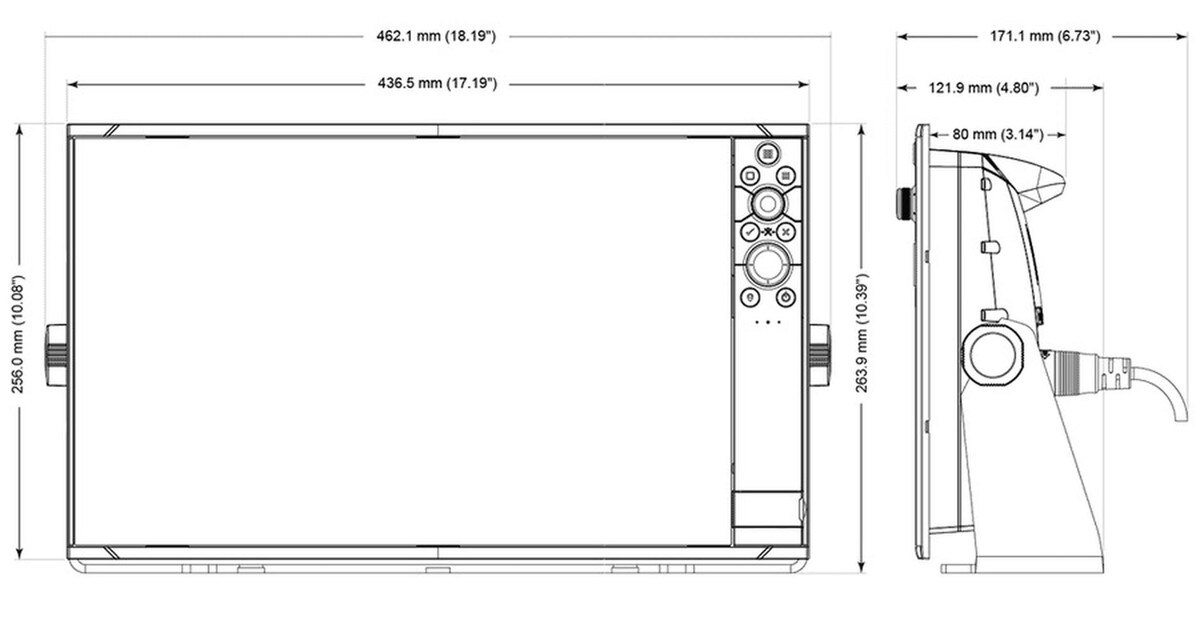

Dimensions

437 x 256 x 98 mm (17.19 x 10.08 x 3.82) with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80 in)
Weight	4.65kg/10.25lb
Environmental
Operating temperature range	-15 degC to +55 degC (5 deg F to 131 deg F)
Environment Shock Vibration	100
